Eye Bolts and Eye Nuts
Eye Bolts and Eye Nuts are also commonly known in the lifting industry as lifting eyes and are available in a wide range of metric and imperial sizes, as well as high tensile steel or stainless steel options.
They vary in shape and size and include Din Standard Eye Bolts, Collar BS4278 Standard Eyebolts, Long Shank, Shoulder Eyebolts, Welded Lag Screw Eye Bolts,Oval Eye Nut,Dynamo type and Eyebolts with built-in Oval Links. lifting Eyebolts & Eye Nuts (WLL – Working Load Limit) are available online from 95kg all the way up to 200 tonnes from standard equipment and greater capacities as special bespoke manufactured.

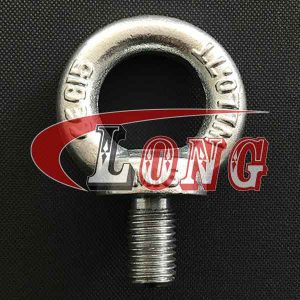

Lifting Eye Bolt DIN580-China LG Supply
- Material: Superior Alloy Steel
- Processing: Drop Forged / Quenched and Tempered
- Finish: Zinc Plated, Hot Dip Galvanized, Powder Coated. Self-Colored are all available
- Safety Factor: 4 : 1

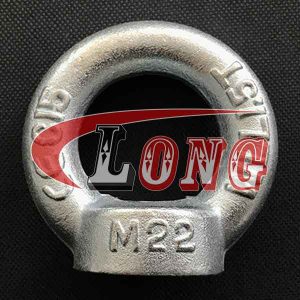

Lifting Eye Nut Din 582-China LG Manufacture
- Made by supper carbon steel
- Zinc Plated, hot dip Galvanized, Powder Coated. Self-Colored are all available.
- Proof tested to 2 x WLL and Minimum Break Force is 6 x WLL.

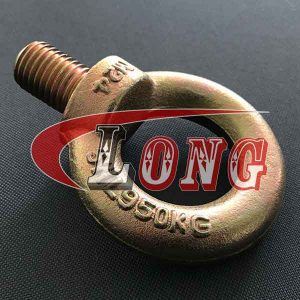

JIS1168 Eye Bolt-China LG Manufacture
- Material: Made by Forged steel
- Processing:Drop Forged / Quenched and Tempered
- Finish: self-color, galvanized
- Usage: Wire rope fittings, Marine hardware fittings
JIS 1169 Eye Nut-China LG Manufacture
- Material: Made by Forged steel
- Processing:Drop Forged / Quenched and Tempered
- Finish: self-color, galvanized
- Usage: Wire rope fittings, Marine hardware fittings
Self Color Steel Metric Bow Nut BS 3974-China LG™
- As specified by BS3974 normalized.
- Supplied with Metric Coarse threads, other pitches available on request.
- For larger sizes we offer our Swivel Hook Bows.
- Alternative thread forms available.
Long Shank Collared Eye Bolt BS 4278 Table 1-China LG™
- Standard: B.S. 4278 – table 1 – 1984
- Material: Made by Forged steel, hardened and tempered
- Safety Factor: MBL equals 5 x SWL
- Hot Dip Galvanizing, Zinc Plating, Powder Coating

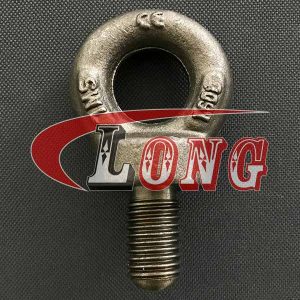

Collared Eye Bolt BS4278 Table 1-China LG Supply
- Standard: B.S. 4278 – table 1 – 1984
- Material: Made by Forged steel, hardened and tempered
- Finish: self-color, galvanized

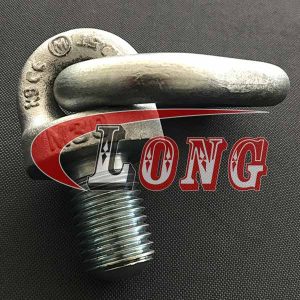

Eyebolt with Oval Link BS4278 Table2-China LG™
- Material: Carbon Steel
- Surface Treatment: Galvanized, hot dipped galvanized, zinc plated
- Finish: Self color
- Safety Factor: MBL equal to 5 times safe working load

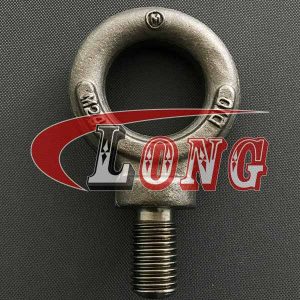

Dynamo Eyebolts BS 4278 Table 3-China LG Supply
- Material: Forged steel
- Processing: Forged
- Safety Factor : MBL equals 5 x SWL
- Finish : self colour, electro-galvanized upon request
Long Shank Dynamo Eyebolts BS4278 Table 3-China LG™
- Material: Made by Forged steel
- Processing: Forged
- Safety Factor: MBL equals 5 x SWL
- Hot Dip Galvanizing, Zinc Plating, Powder Coating
Forged Screw Eye Bolts G-275-China LG Manufacture
- Material: Carbon Steel
- Handicraft: Forged Steel – Quenched and Tempered.
- Surface: electric galvanized, Hot Dip galvanized.
- Safety Factor: 5:1
Forged Shoulder Nut Eye Bolts G-277-China LG Manufacture
- Forged Steel – Quenched and Tempered
- Finish with standard Hot Dip galvanized hex nuts.
- Ultimate Load is 5 times the Working Load Limit.
- Proof Load is 2 times the Working Load Limit.
Machinery Shoulder Eye Bolt S-279/M-279-China LG™
- Material : Made by Forged steel, hardened and tempered
- Safety Factor : MBL equals 5 x SWL
- Finish : self colour, electro-galvanized upon request
Regular Nut Eye Bolts G-291-China LG Manufacture
- Forged Steel — Quenched and Tempered.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- All Bolts Hot Dip galvanized after threading (UNC).
- Furnished with standard Hot Dip galvanized hex nuts.
G-400 Threaded Eye Nut UNC Galvanized-China LG Manufacture
- Forged carbon steel
- Tapped with standard UNC class 2 threads after galvanizing
- Zinc Plated, hot dip Galvanized, Powder Coated. Self-Colored are all available
Forged Oval Eye Nut
- Material: Carbon Steel, Alloy Steel
- Process: Drop forged
- Heat Treatment: Quenched and Tempered
- Finish: Hot Dip Galvanized Certification: Test certificates can be supplied upon request
Wire Turned Eye Bolts-China LG Manufacture
- Material: High tensile steel, Carbon Steel
- Surface Treatment: zinc plated, high polished, self-color, hot dip galvanized

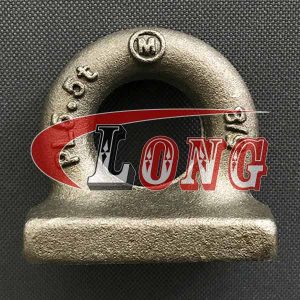

Rectangular Base Deck Eye Plates-China LG Manufacture
- Standard: Commercial standard
- Material: High tensile steel, Carbon Steel
- Surface Treatment: zinc plated, high polished, self-color, hot dip galvanized
DIN 444 Eye Swing Bolts-China LG Manufacture
- Model: DIN444
- DIN444 Carbon SteelEye bolts upset forged with rolled threads for high strength.
