Shackles
Shackles are the one of the most used rigging fittings. Because the pins are removable, they are used to make connections to slings, rope, cable, etc.
There are two basic shapes for shackles and they are either anchor pattern or chain pattern. The anchor pattern shackles are more popular and widely used because of increased area on the inside of the shackle body. This allows for more articulation with the item it is connected to.
China LG supply typical industrial shackles are available in many basic styles—Chain Shackle(D Shackle) , Anchor Shackle(Bow Shackle), Trawling Shackle, lifting shackle, high tensile shackle, Alloy shackle,Commercial Shackle, stainless shackles,Grade S Shackle, European Type Shackleetc

  • China LG Trawling Dee Shackle Sunken Head

    • Material: Alloy Steel
    • Hot Dip Galvanized, Eletrico-Galvanized, or Self-colored
    • Heat treated: Tempered and Quenched
    • Special specification and marks can be made according customers’ requirements
  • China LG Trawling Bow Shackle Square Sunken Hole

    • Material: Alloy Steel
    • Hot Dip Galvanized, Eletrico-Galvanized, or Self-colored.
    • Heat treated: Tempered and Quenched.
    • Special specification and marks can be made according customers’ requirements.
  • LG Trawling Dee Shackle-Square Head Pin

    • High Tensile Steel / Grade 6.
    • Forged – Quenched and Tempered.
    • Self- colored, Electric galvanized or Hot dipped galvanized.
    • Special specification and marks can be made according customers’ requirements.
  • Trawling Bow Shackle with Square Head Screw Pin

    • Material:Forged steel
    • Surface: Self- colored, Electric galvanized, Hot dipped galvanized
    • Notes: Special specification and marks can be made according customers’ requirements
    • Working load limit (6:1)
  • US Fed. Spec. Screw Pin chain shackles G-210

    • Material: Carbon steel & Alloy steel
    • Safety Factor: 6:1/4:1
    • Finishing: Zinc Plated, Hot dip galvanized, self-colored, Powder Coated.
    • Heat treated: Tempered and Quenched
    • Tips: Special specification and marks can be made according to customers’ requirements
  • US Fed. Spec. Screw pin Anchor shackle G-209

    • Surface finished: Zinc Plated, Hot Dipped Galvanized and Powder Coating.
    • WLL: permanently shown on every Galvanized shackle.
    • Process: Forged – Quenched and Tempered.
    • Safety Factor: 6:1
  • US Fed. Spec. Safety Bolt Chain Shackles G-2150

    • Material: Alloy Steel, Carbon steel
    • Finishing: Hot Dip Galvanized, Electro-Galvanized, self-colored.
    • Heat treated: Tempered and Quenched
    • Maximum Proof Load is 2.0 times the Working Load Limit.
    • 4 or 6 Times the Working Load Limit.
  • US Fed. Spec. Safety Bolt Anchor Shackles G-2130

    • Material: Body: C1045 Steel, Pin: Alloy Steel
    • Safety Factor:  4:1 or 6:1
    • Finishing: Hot Dip Galvanized, Electro-Galvanized, self-colored.
    • Heat treated: Tempered and Quenched
    • Maximum Proof Load is 2.0 times the Working Load Limit.
  • Commercial Galvanized Bow Shackle

    • Mild steel, not heat treated.
    • Electro galvanized and hot dip galvanized.
    • Commercial shackles are easily identified by the pin and body material being manufactured from the same diameter and should not be used for safety critical or lifting applications.

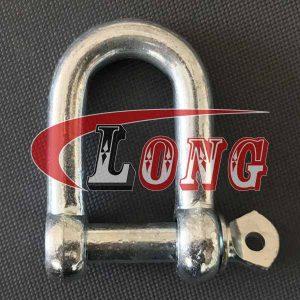

  • Commercial Galvanized Dee shackle

    • Mild steel, not heat treated.
    • Electro galvanized and hot dip galvanized.
    • Commercial shackles are easily identified by the pin and body material being manufactured from the same diameter and should not be used for safety critical or lifting applications.

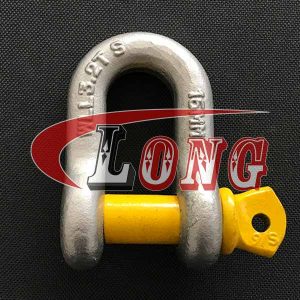

  • Grade S Screw Pin Dee shackles

    • Forged – Quenched and Tempered.
    • Conforms to AS2741 manufactured from Grade “S” material in Bow configuration with Screw Pin hot dipped galvanized
    • Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
    • Test Certificates are available upon request.
  • Grade S Safety Pin Bow Shackle

    • Forged – Quenched and Tempered.
    • Conforms to AS2741 manufactured from Grade “S” material in Bow configuration with Screw Pin hot dipped galvanized
    • Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
  • Grade S Screw Pin Bow Shackle

    • Forged – Quenched and Tempered.
    • Conforms to AS2741 manufactured from Grade “S” material in Bow configuration with Screw Pin hot dipped galvanized
    • Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.



  • Square Head Dee Shackle

    • Surface: Self- colored, Electric galvanized, Hot dipped galvanized
    • Material:Forged steel
    • Please Note That These Shackles Are Not Be Used For Lifting.
    • Notes: Special specification and marks can be made according customers’ requirements
  • High tensile Square Head Bow Shackle

    • Surface: Self- colored, Electric galvanized, Hot dipped galvanized
    • Material:Forged steel
    • Notes: Special specification and marks can be made according customers’ requirements
    • Working load limit (6:1)
  • High tensile Square Head Dee Shackle

    • Surface: Self- colored, Electric galvanized, Hot dipped galvanized
    • Material:Forged steel
    • Notes: Special specification and marks can be made according customers’ requirements
    • Working load limit (6:1)
  • China LG Long D shackle,Piling Shackle

    • Material:Forged steel
    • Surface: Self- colored, Electric galvanized, Hot dipped galvanized
    • Notes: Special specification and marks can be made according customers’ requirements
    • Working load limit (6:1)
  • Grade S safety pin Dee shackle

    • Forged – Quenched and Tempered.
    • Conforms to AS2741 manufactured from Grade “S” material in Bow configuration with Screw Pin hot dipped galvanized
    • Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.   Test Certificates are available upon request.
  • JIS Standard Screw Pin Bow Shackle with Collar

    • Material carbon steel.
    • Surface: electro galvanize or on special requirement.
    • Special specification and marks can be made according to customers’ requirements.
    • Treatment: free forged; quenched and tempered
  • JIS Standard Bow Shackle without Collar

    • Material carbon steel.
    • Surface: electro galvanize or on special requirement.
    • Special specification and marks can be made according to customers’ requirements.
    • Treatment: free forged; quenched and tempered
